Приемник RadioLink R6DS / R6DSM R9DS R12DS R12DSM 6/10/9/12CH PWM SBUS для удаленного управления самолетами, гоночными дронами и частями DIY.

Приемник RadioLink R6DS / R6DSM R9DS R12DS R12DSM 6/10/9/12CH PWM SBUS для удаленного управления самолетами гоночными дронами и частями DIY.

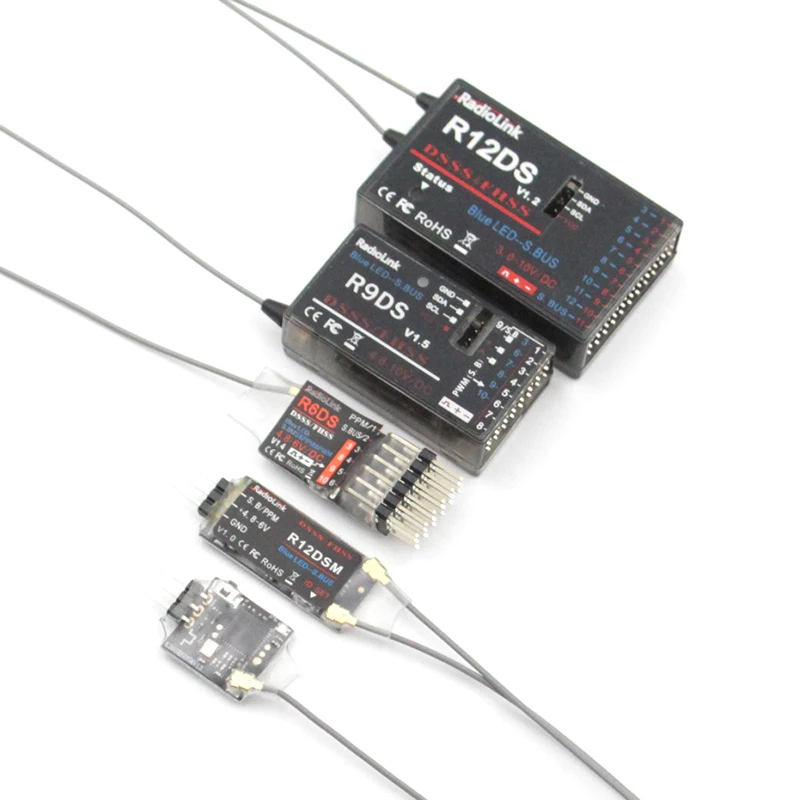

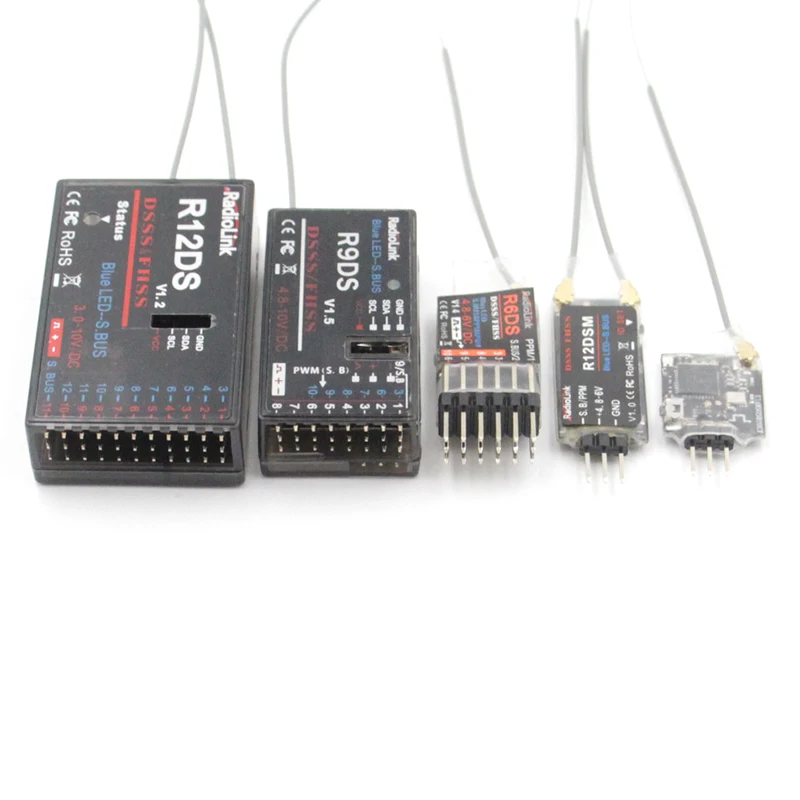

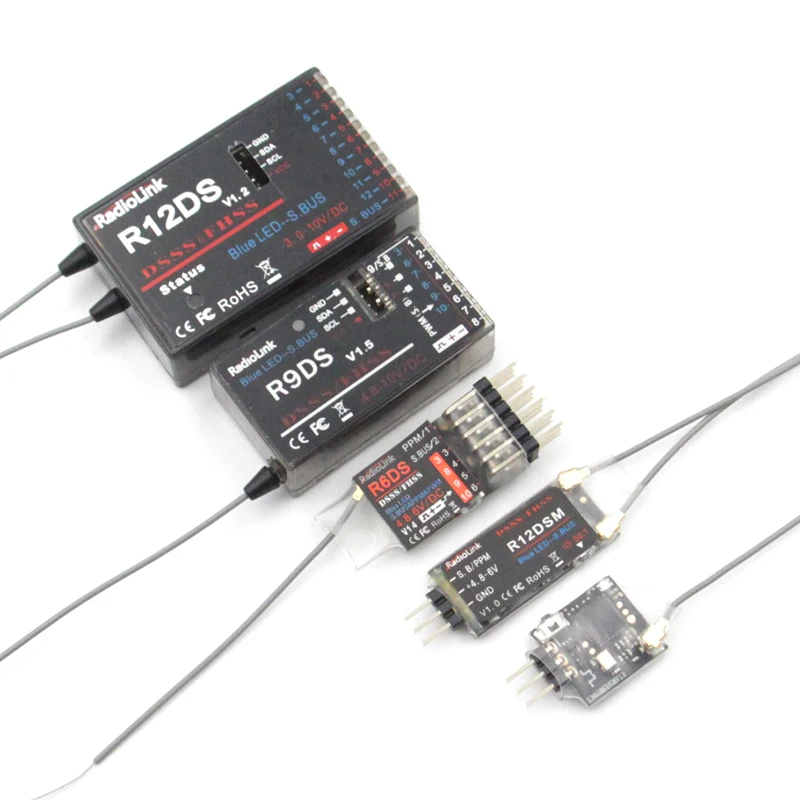

Item: Radiolink R6DS R6DSM R9DS R12DS R12DSM Receiver
Parameters:

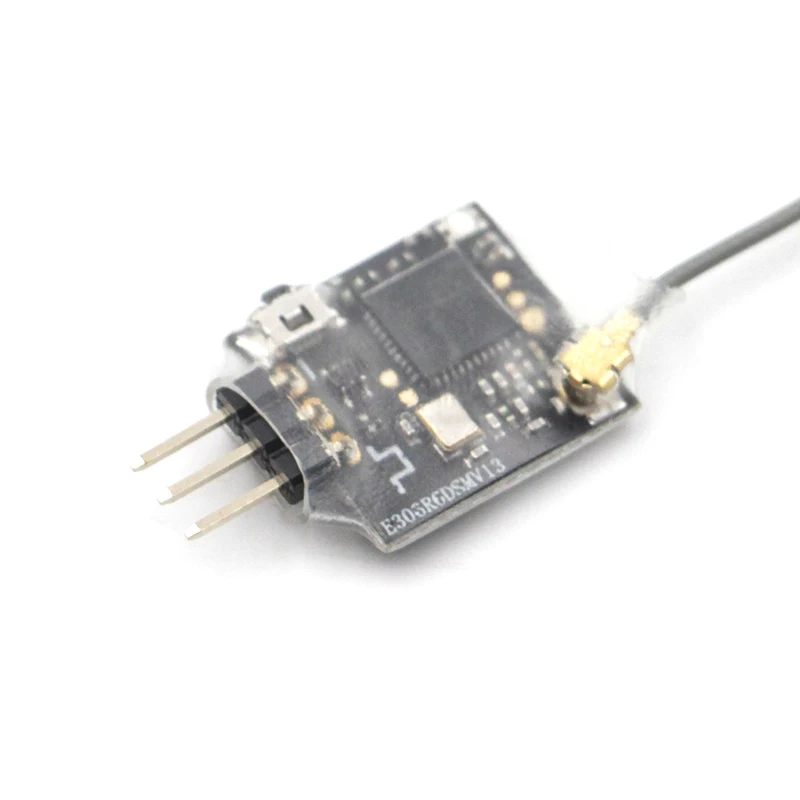

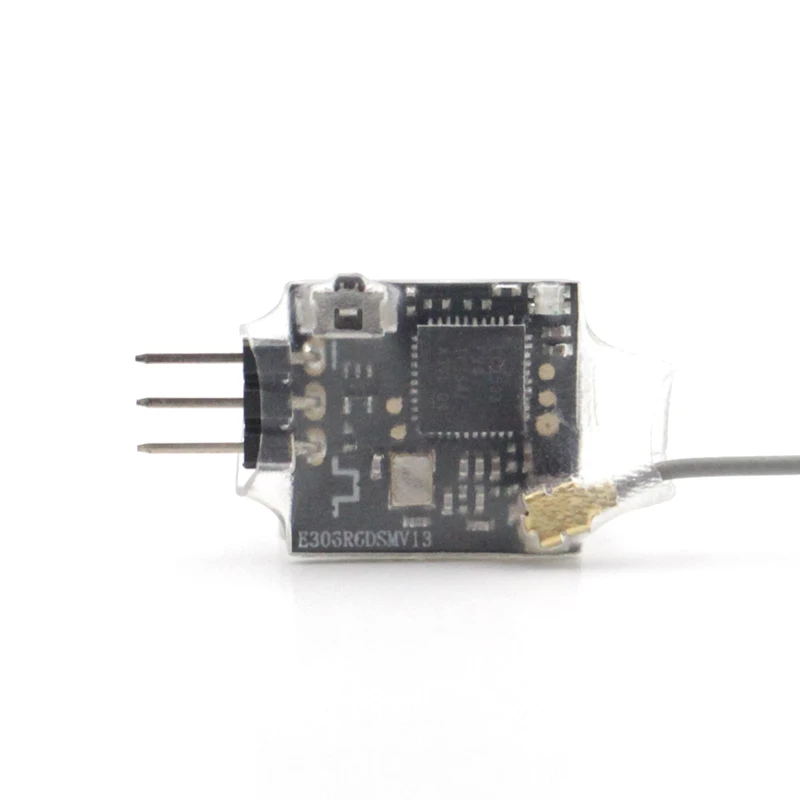

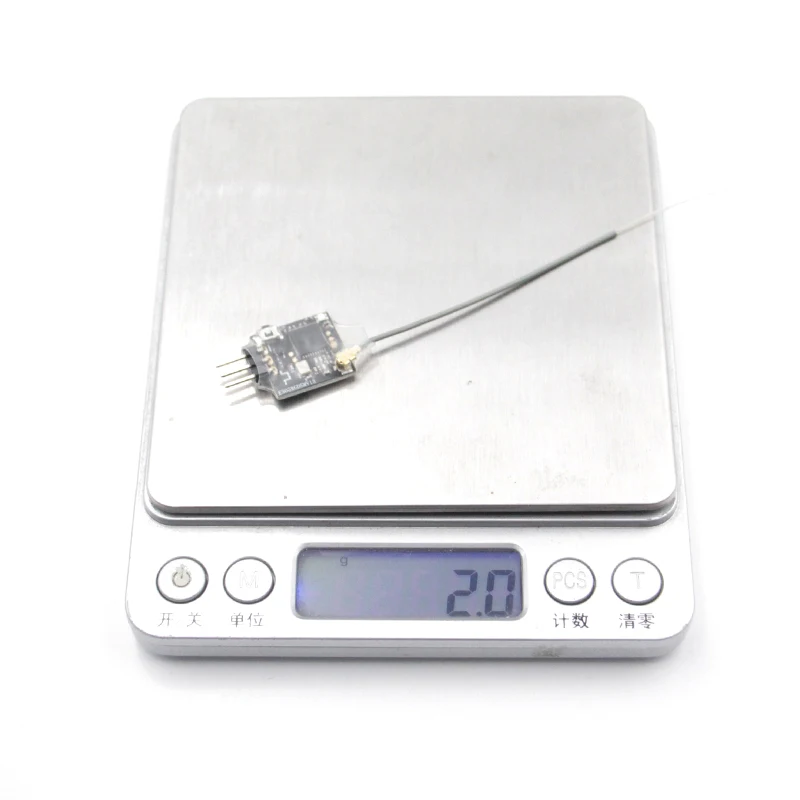

R6DSM:
Channels: 10 channels
Operating voltage: 4.8-6V
Operating current: 38-45mA (input voltage: 5V)
Size: 15x13MM
Weight: 2g
Detachable antenna
4096-section accuracy, 0.25us per section, anti-vibration servo rudder.
Control distance: about 600 meters, the control distance depends on the environment.
DSSS and FHSS distribution spectrum operating in sync
Support SBUS and PPM signal, use for Radiolink AT9, AT9S, AT10 and AT10II transmitters, it is the best choice for racing drone.

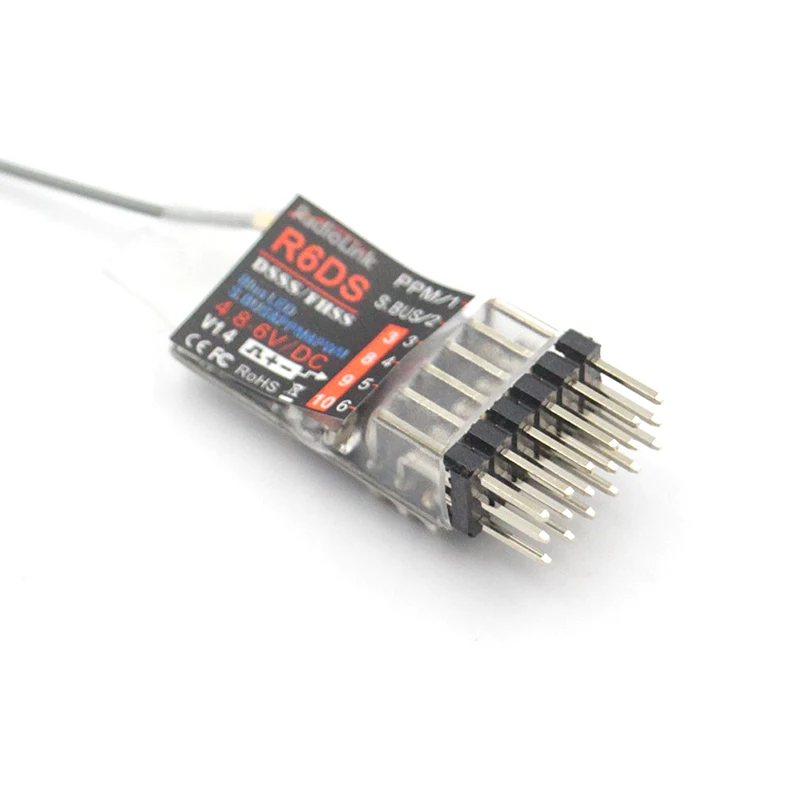

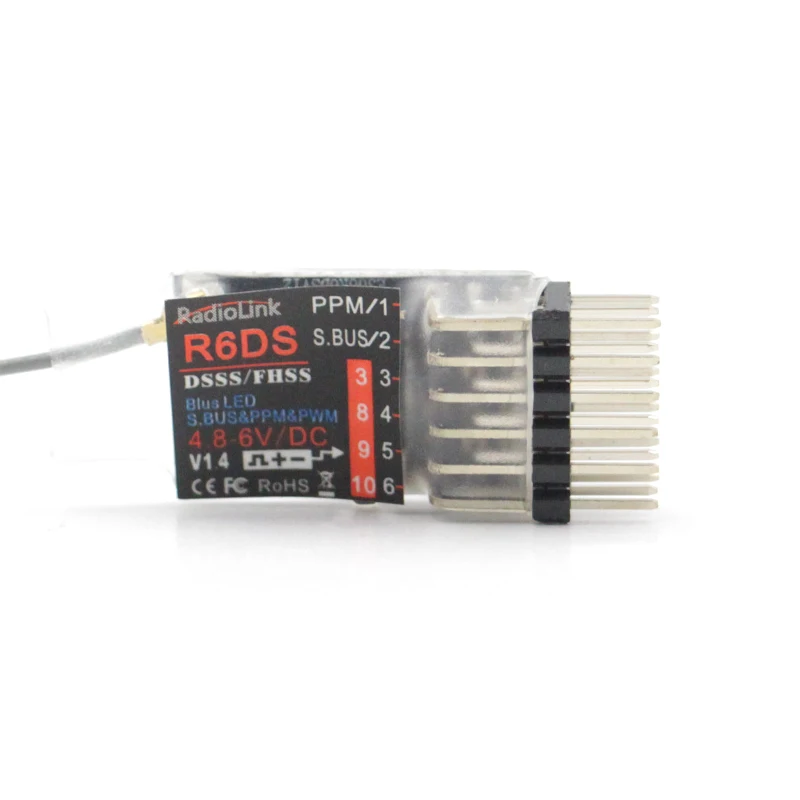

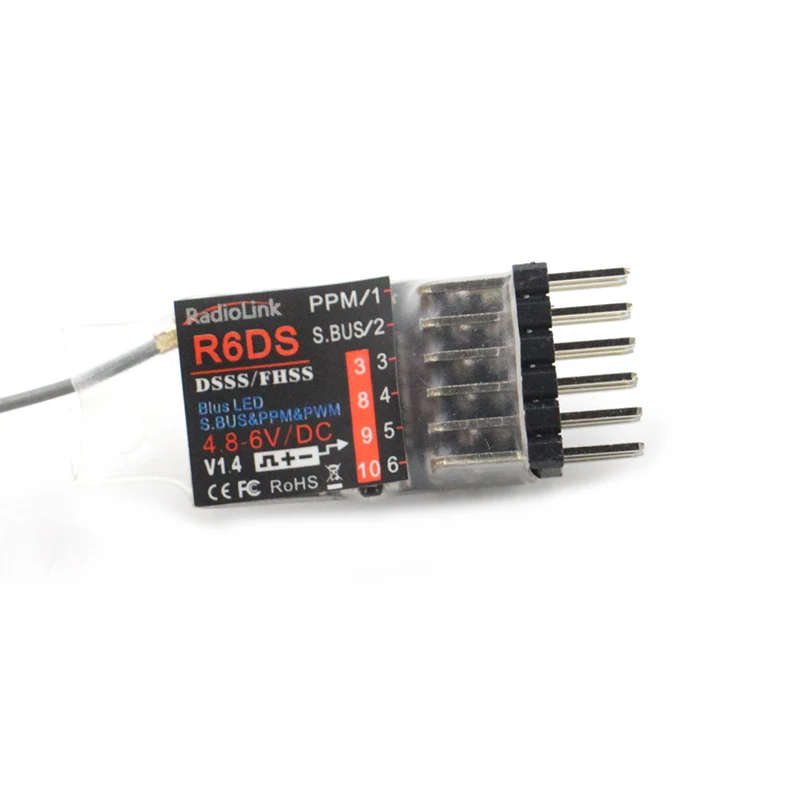

R6DS:
Channels: the red LED indicator is for PWM mode. Blue LED for SBUS / PPM, can be extended to 10 channels.
Power input: max. 6 V
Control distance: 600 meters in the air, or even beyond your sight
current consumption: 38-45mA (5V)
Size: 25 × 15mm

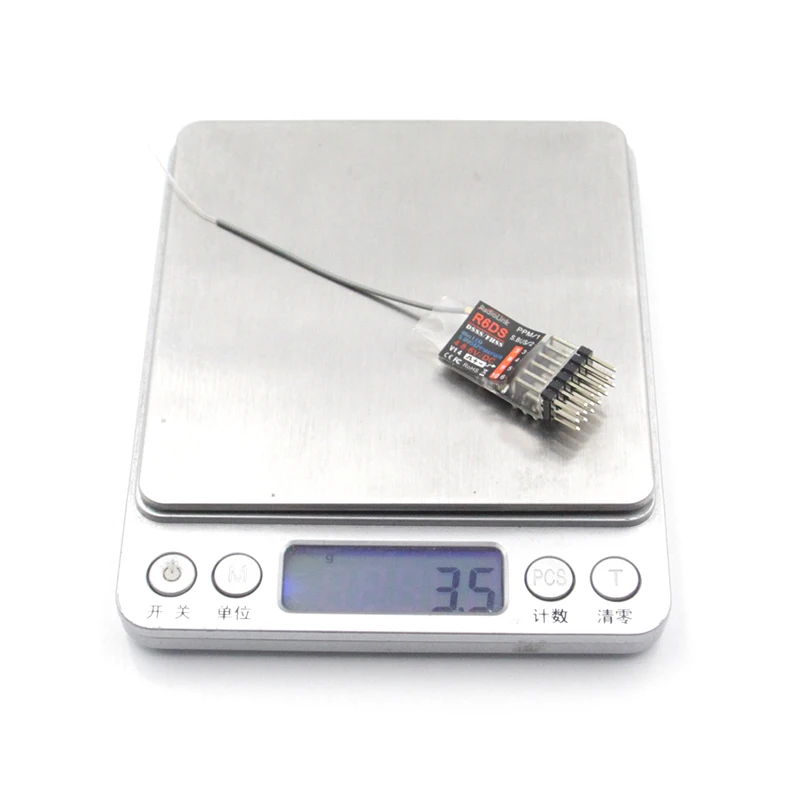

Weight: 3.5 g
precision: 4096
Radiolink R6DS, 2.4G 6 channel receiver, DSSS and FHSS spread spectrum working in sync, use for Radiolink AT9, AT9S and AT10 AT10II transmitters. SBUS, PPM and PWM signal possible working at the same time.

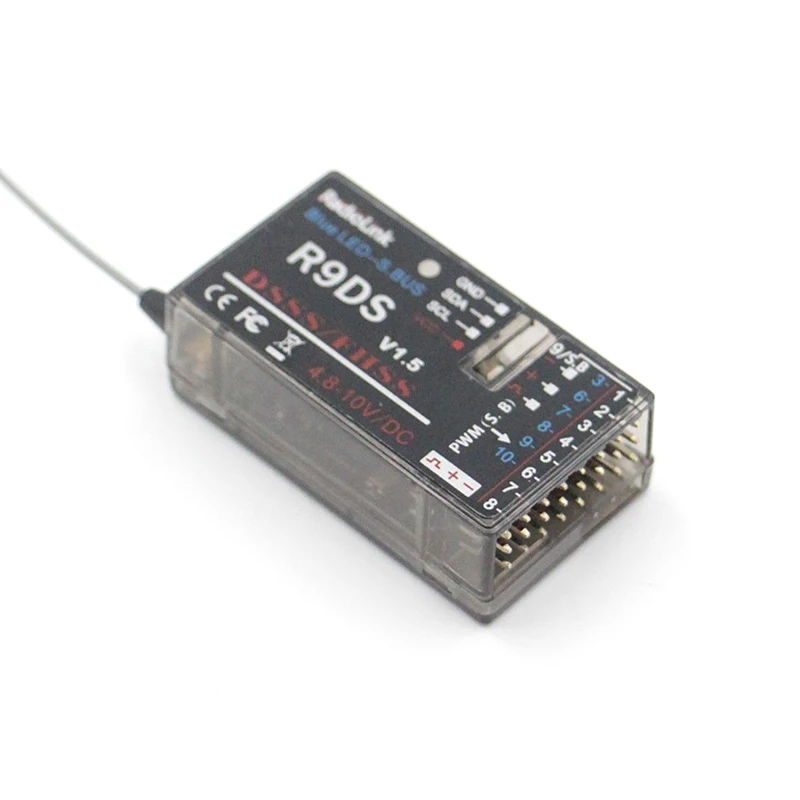

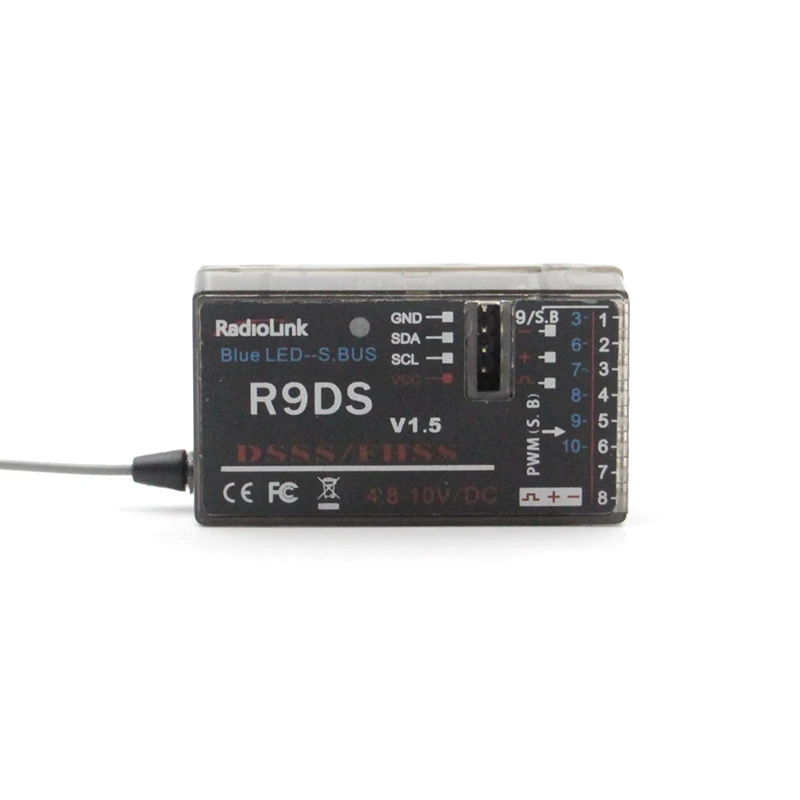

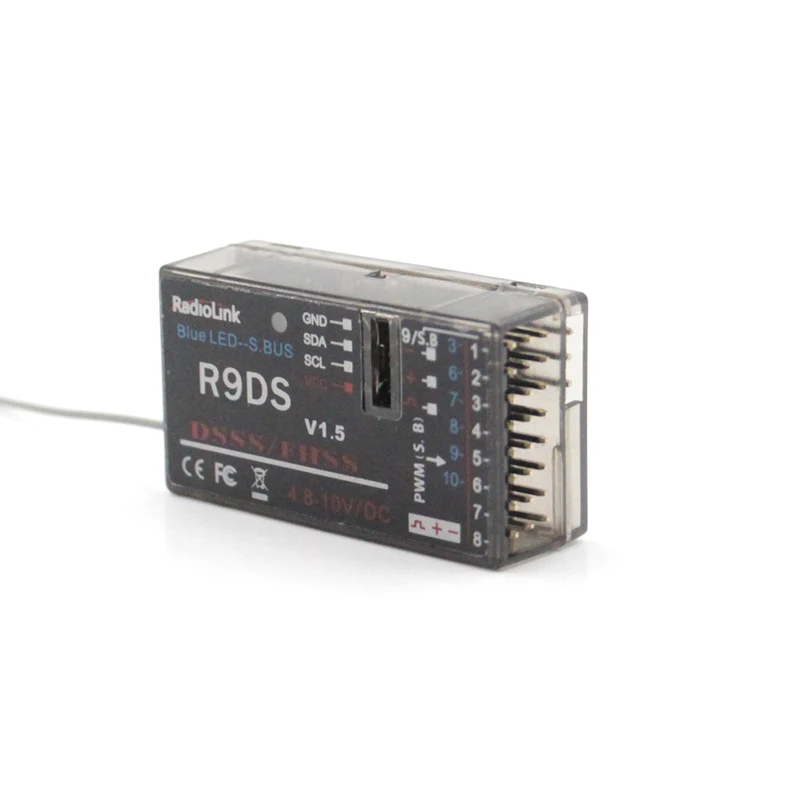

R9DS:
Channel: 9 channels, CH9 is for S. BUS
Maximum input voltage: 10V
Current: 38-45 mA (voltage input: 5 V)
Precision Section 4096
Item size: 41 * 23 * 14mm

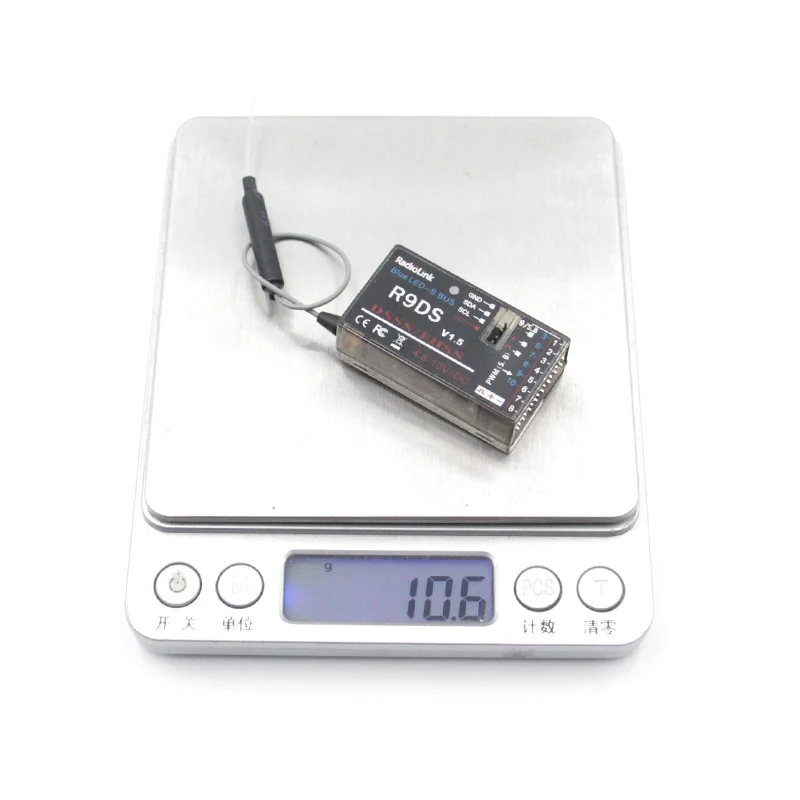

Item Weight: 10.6g
DSSS and FHSS technique, superanti-interference and stability
RX voltage telemetry and signal resistance, extensional sensor for EP, temperature, RPM, GPS, etc.
S bus! CH9 is set for S. BUS
All 9 channels need 3 ms to respond in parallel
4096 precision section, stable servo, no rudder shake
Mini design for comfortable mounting and operation

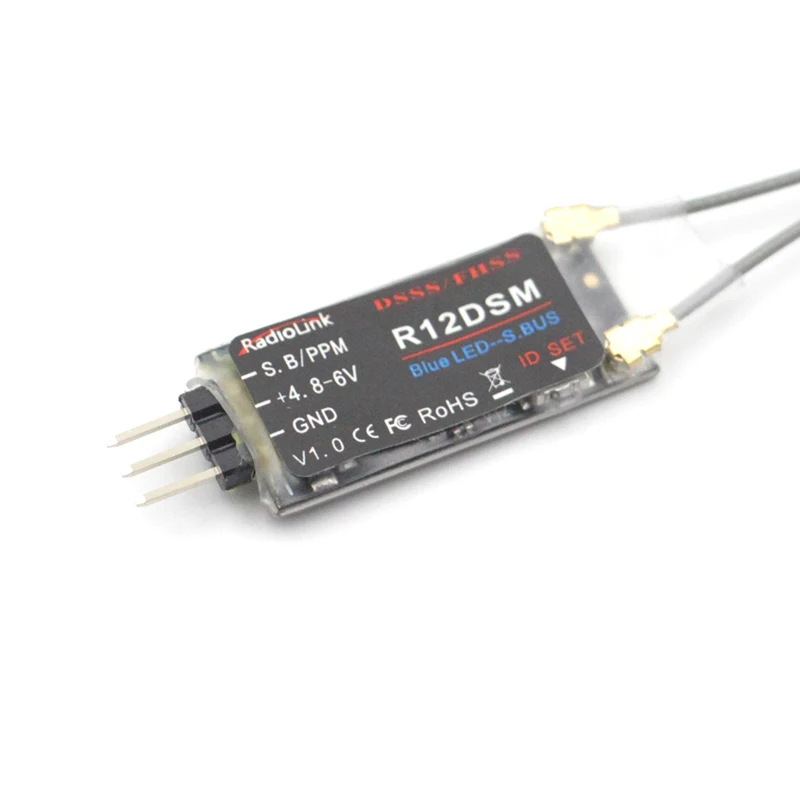

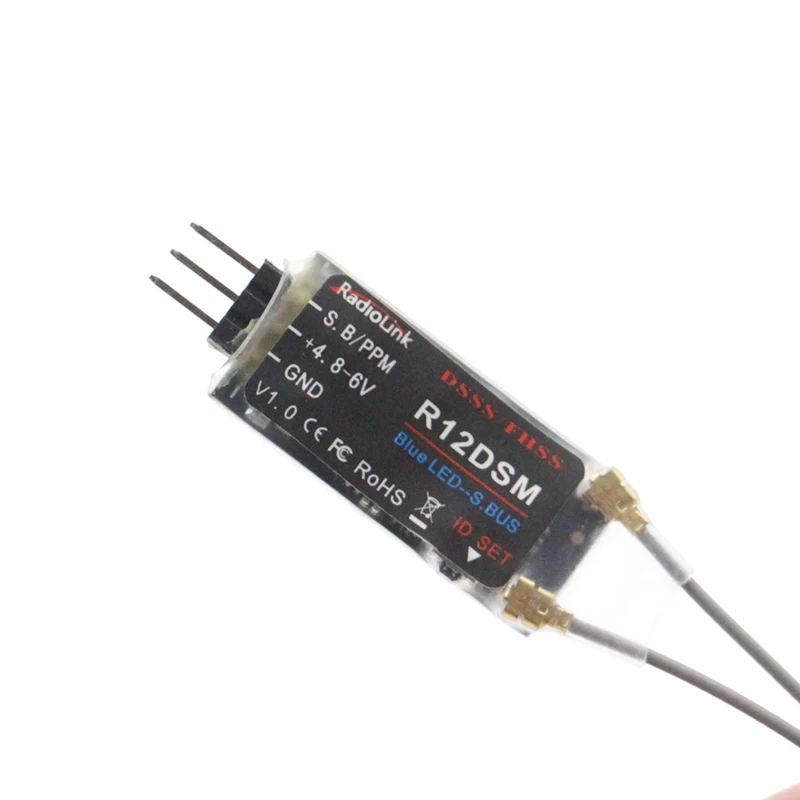

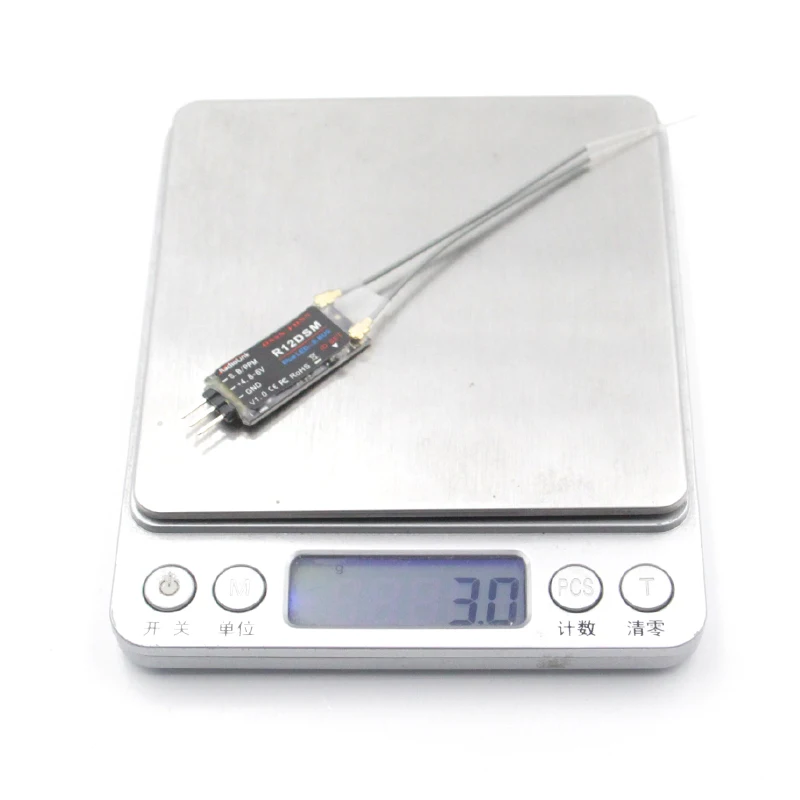

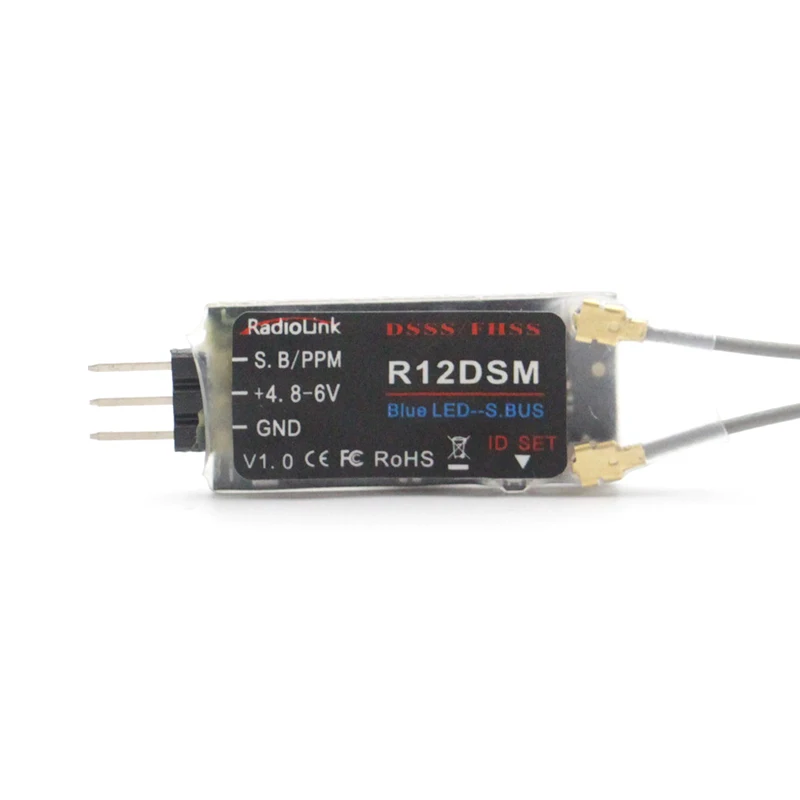

R12DSM:
Channels: 12 channels
Operating voltage: 4.8-6V
Operating current: 38-45mA (input voltage: 5V)
Size: 15x13 MM
Weight:3g
Detachable antenna
4096-section precision, 0.25us per section, anti-vibration rudder servo.
Control distance: about 600 meters, the control distance depends on the environment.
DSSS and FHSS synchronous operation spread spectrum
Support SBUS and PPM signal, use for Radiolink AT9, AT9S, AT10 and AT10II transmitters, it is the best choice for racing drone.

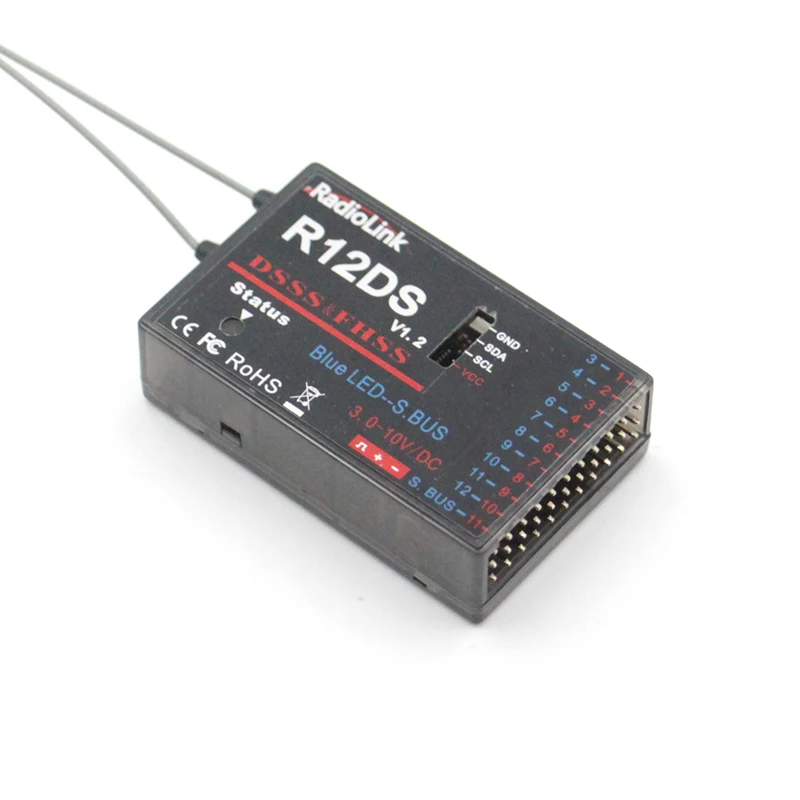

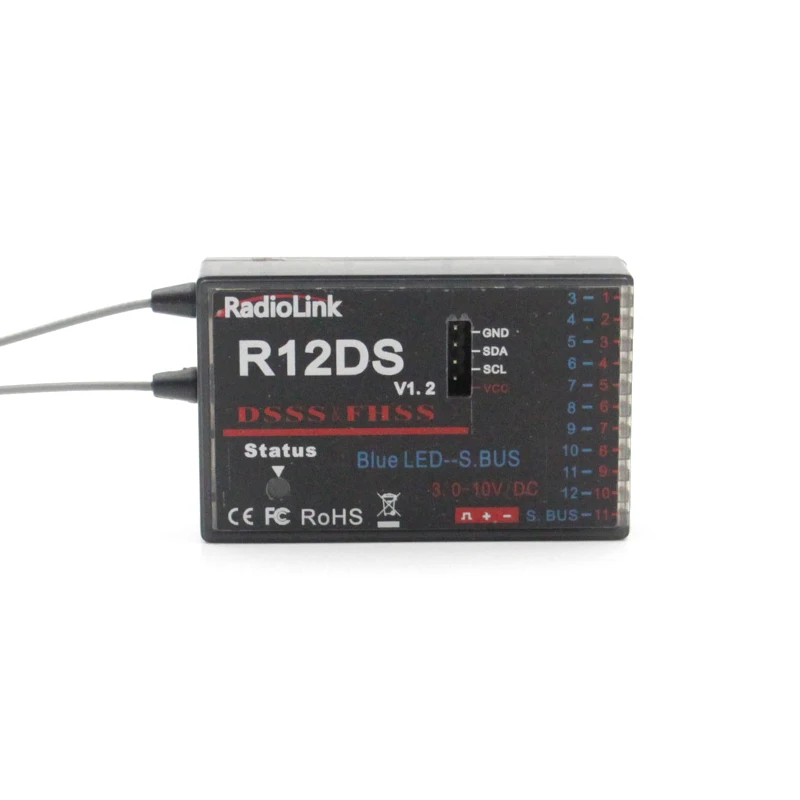

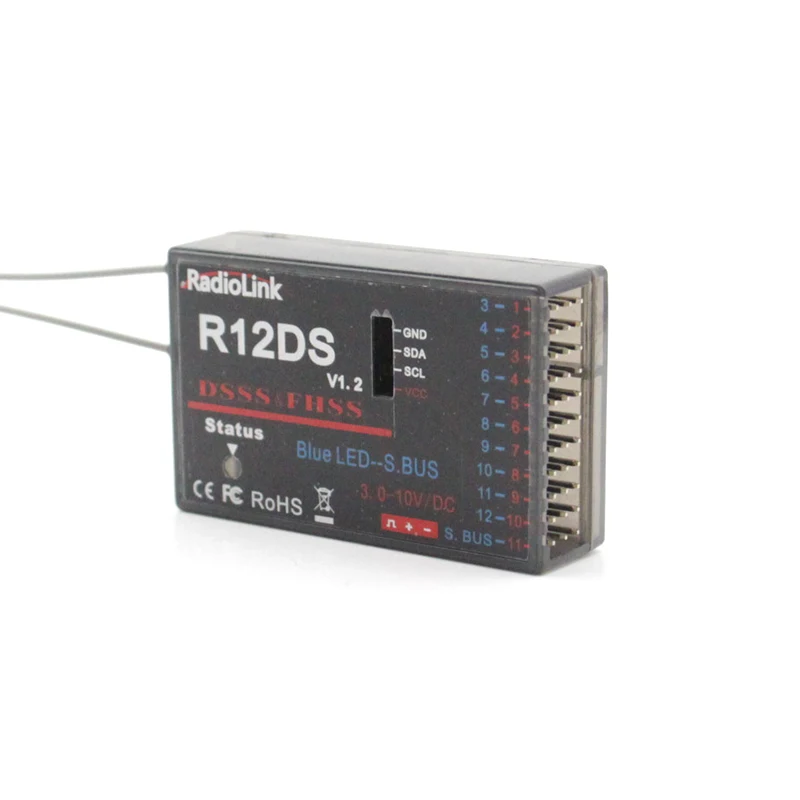

R12DS:
With two-way communication function
Can return flight data
High sensitivity, distances up to 1.1 km
DSSS broadcast spectrum technology, high reliability
12 channels
And then provide an additional supply port (B / C)
Operating voltage: 4.6V-16V (receiver only on behalf of the allowable range, does not mean that the other connected to the receiving device can work at high voltage)

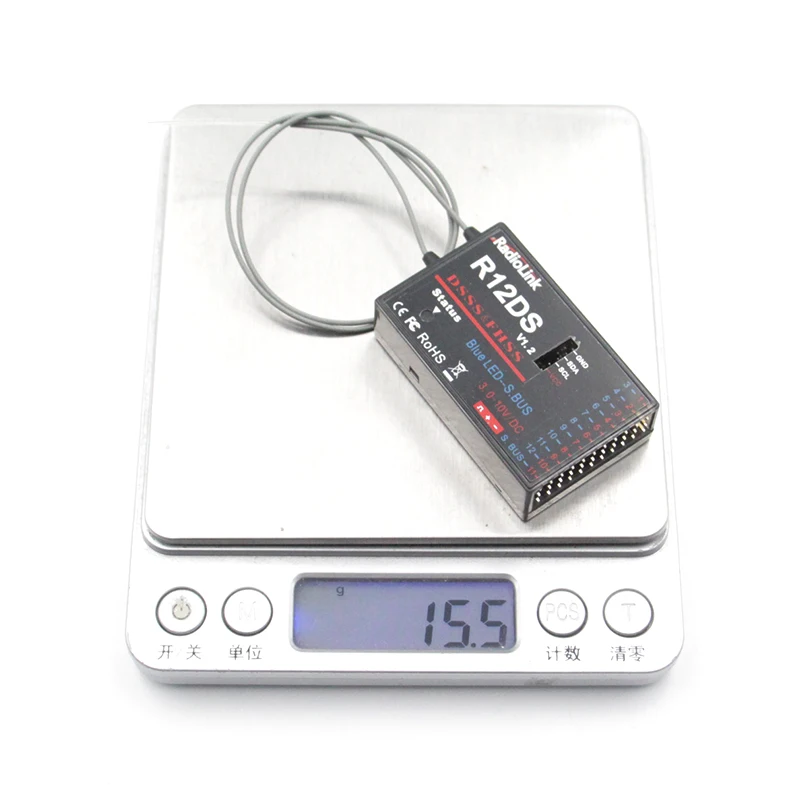

Single Weight: 15.5g

Package Included:
R6DS * 1
or
R6DSM * 1
or
R9DS * 1
or
R12DS * 1
or
R12DSM * 1
